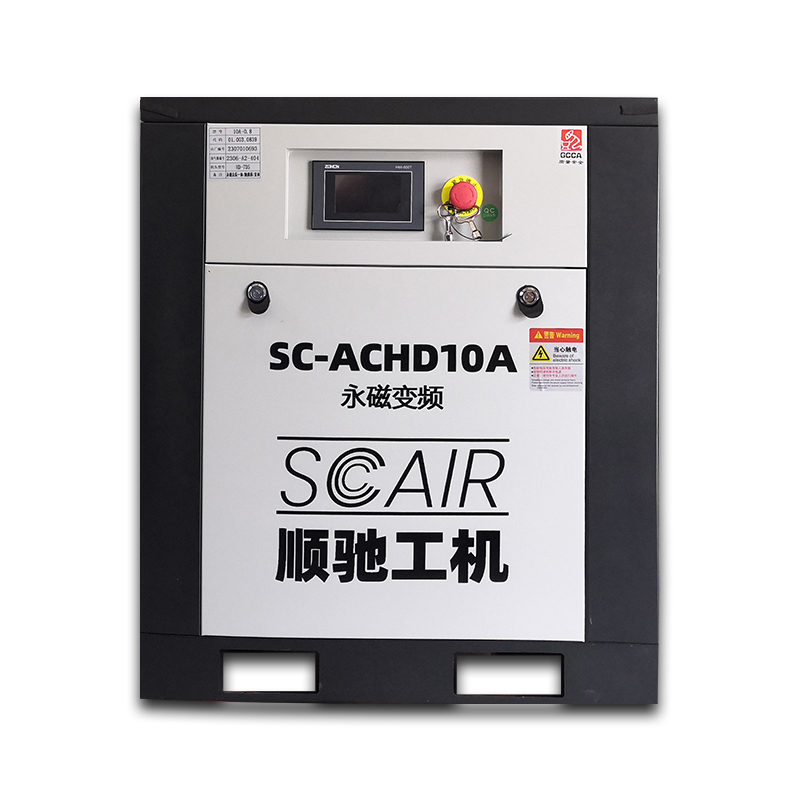

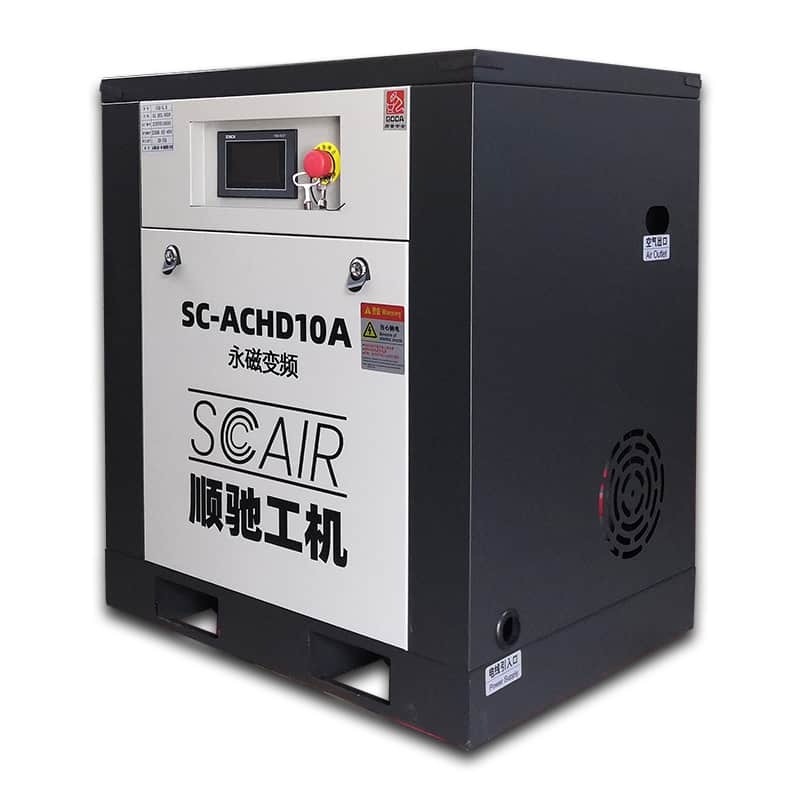

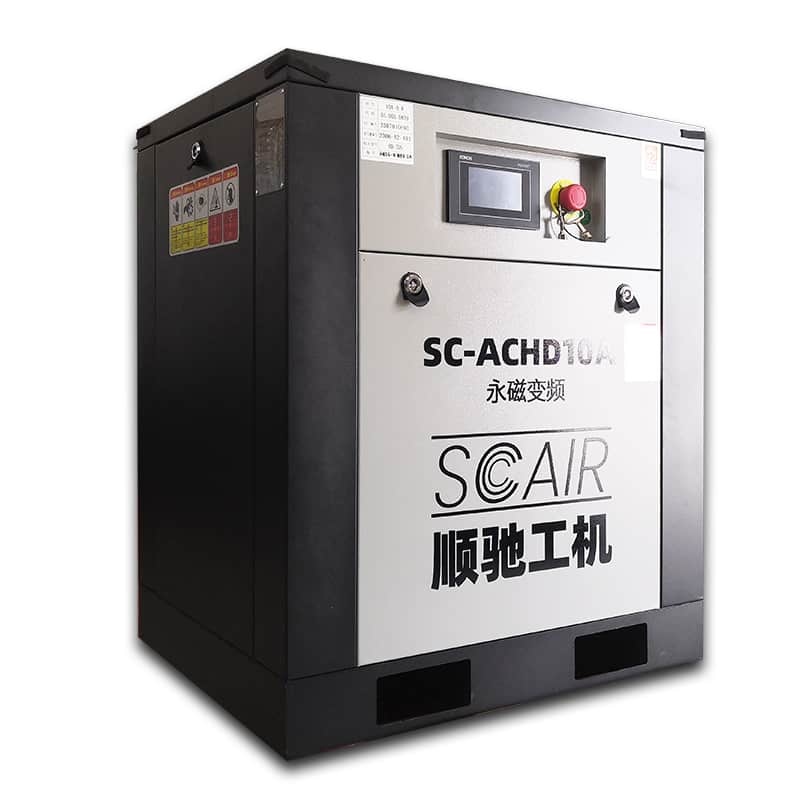

Screw air compressor adopts permanent magnet frequency conversion technology, which has the characteristics of high efficiency and energy saving. 10 horsepower, usually corresponding to a motor power of about 7.5KW, typically 380V/50HZ industrial power supply, ensures stable equipment operation, and can customize voltage lines.
| parameter model |
F.A.D/Max Working Pressure | Power | Voltage/ Frequency | Cooling Mode | Outlet Diameter |
Dimension | Weight | Ambient Temperature |
Discharge Temperature |
| m³/min/MPa | HP/KW | V/50Hz | mm | Kg | |||||
| SC-ACBS2T50 | 6.8/0.8 | 50/37 | 380V/50Hz/3Ph | Air-Cooling | Rp1-1/2 | 1950*1100*1390 | 950 | -5℃~+45℃ | < Ambient temperature+15℃ |
| 5.8/1.0 | |||||||||
| 5.4/1.2 | |||||||||
| SC-ACBS2T60 | 8.2/0.8 | 60/45 | Rp1-1/2 | 1950*1150*1390 | 980 | ||||
| 7.4/1.0 | |||||||||
| 6.6/1.2 | |||||||||
| SC-ACBS2T75 | 11.6/0.8 | 75/55 | DN50 | 2590*1500*1640 | 1890 | ||||
| 9.1/1.0 | |||||||||
| 9.0/1.2 | |||||||||
| SC-ACBS2T100 | 15.6/0.8 | 100/75 | DN50 | 2590*1500*1640 | 1960 | ||||
| 11.6/1.0 | |||||||||
| 11.3/1.2 | |||||||||
| SC-ACBS2T120 | 18.5/0.8 | 120/90 | DN65 | 2990*1700*1963 | 2200 | ||||
| 15.6/1.0 | |||||||||
| 14.5/1.2 | |||||||||
| SC-ACBS2T150 | 21.0/0.8 | 150/110 | DN65 | 2990*1700*1963 | 2360 | ||||
| 18.5/1.0 | |||||||||
| 16.0/1.2 | |||||||||
| SC-ACBS2T180 | 24.7/0.8 | 180/132 | DN80 | 2990*1700*1963 | 2445 | ||||
| 21.3/1.0 | |||||||||
| 18.5/1.2 | |||||||||
| SC-ACBS220 | 31.0/0.8 | 220/160 | DN80 | 3450*1880*2120 | 4000 | ||||
| 16.0/1.0 | |||||||||
| 24.7/1.2 | |||||||||
| SC-ACBS250 | 35.5/0.8 | 250/185 | DN80 | 3450*1880*2120 | 4050 | ||||
| 31.0/1.0 | |||||||||
| 26.0/1.2 | |||||||||
| SC-ACBS270 | 40.0/0.8 | 270/200 | DN125 | 3820*1980*2210 | 5600 | ||||
| 35.5/1.0 | |||||||||
| 32.0/1.2 | |||||||||
| SC-ACBS2T300 | 45.0/0.8 | 300/220 | DN125 | 3820*1980*2210 | 5700 | ||||
| 40.0/1.0 | |||||||||
| 35.5/1.2 | |||||||||
| SC-ACBS2T340 | 50.0/0.8 | 340/250 | DN125 | 382*1980*2210 | 6000 | ||||
| 45.0/1.0 | |||||||||
| 40.0/1.2 |
